Network Policies

Network policies in QuickStack allow you to control traffic flow between applications within a project and regulate access to external services. This feature enhances security by implementing fine-grained network segmentation at the Kubernetes level.

Overview

By default, all applications within a QuickStack project can communicate with each other and access external services. Network policies enable you to:

• Restrict which applications can communicate with each other
• Control outbound internet access
• Isolate sensitive applications

Kubernetes Network Policies

QuickStack network policies are implemented using Kubernetes NetworkPolicy resources. k3s uses kube-router as the network plugin to enforce these policies.

Network Policy Types

QuickStack provides several pre-configured network policy templates:

Allow All (Default)

• Ingress: Allows traffic from all sources within the project namespace and the internet (via domain)
• Egress: Allows all outbound traffic to other apps in the project and internet
• Use case: Development environments, applications that need unrestricted access

Internet Only

• Ingress: Blocks traffic from other project applications. Allows traffic from the internet (via domain)
• Egress: Allows only internet access (blocks internal app-to-app communication)
• Use case: Applications that only need to reach external APIs/services

Project Apps Only

• Ingress: Allows traffic from all sources within the project
• Egress: Allows only traffic to other project applications (blocks internet access)
• Use case: Internal services, databases, backend APIs

Deny All

• Ingress: Blocks all incoming traffic
• Egress: Blocks all outbound traffic
• Use case: Highly sensitive applications, testing isolation, databases (for egress)

Configuring Network Policies

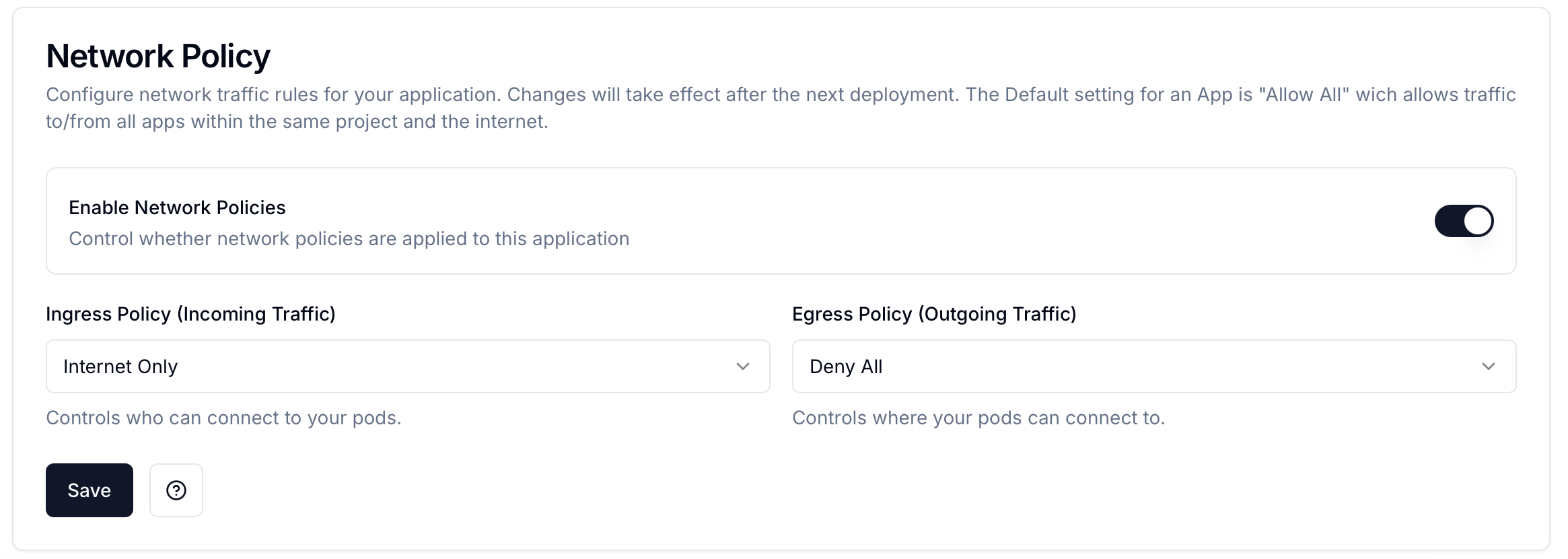

Enabling Network Policies for an Application

1. Navigate to Your App: Open your project and select the application you want to configure.

2. Access Network Settings: Click on the Advanced tab.

3. Enable Network Policy:

   • Toggle Use Network Policy to enable network policy management.
   • Select a policy type from the dropdown menu.

4. Save and Redeploy:

   • Click Save to apply the configuration.
   • Redeploy the application for changes to take effect.

Redeployment Required

Network policy changes require a redeployment of the application to be applied. Existing connections may be terminated when policies are updated.

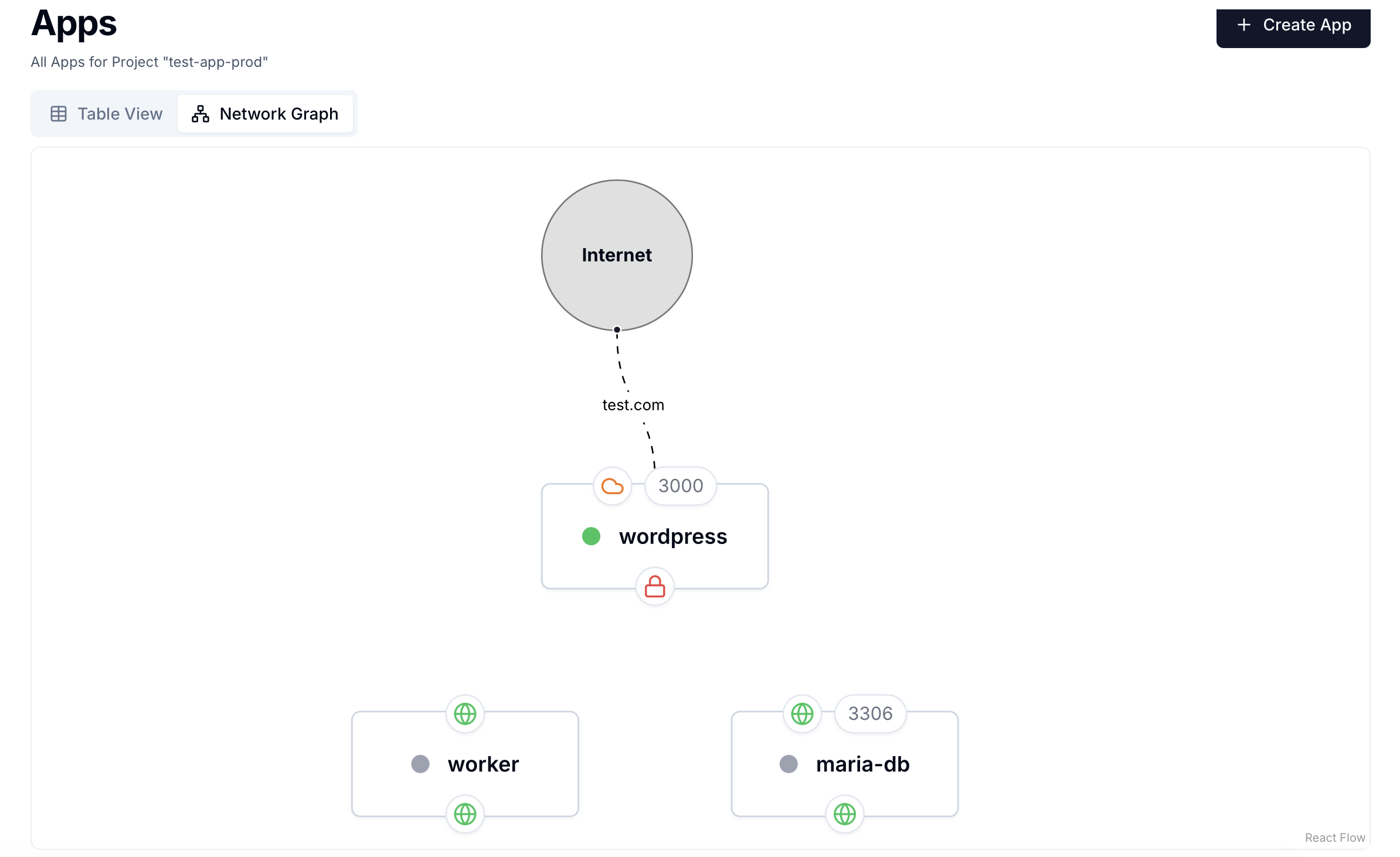

Tipp

To get a better overview of the network policies applied for a project, you can open the project overview "Network Graph" tab. Here you can see all apps and their network connections visually represented.
